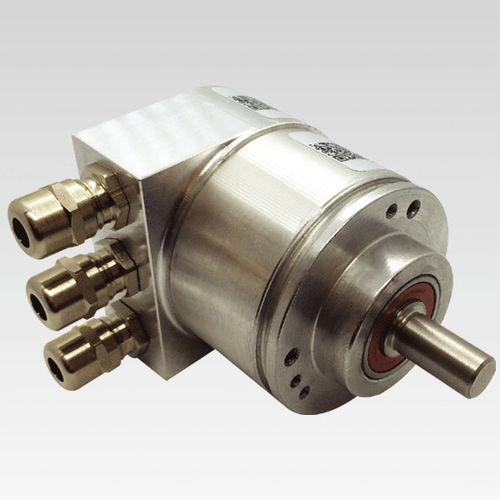

Absolute rotary encoder FNC AC 58Bmagneticsolid-shaftsingle-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic
- Construction
- solid-shaft, single-turn, multi-turn, synchro-flange, flange
- Output signal
- with Fieldbus interface, analog
- Material
- aluminum
- Protection level
- vibration-resistant, shock resistant, IP65, IP54
- Other characteristics
- modular
- Housing diameter
58 mm
(2.28 in)
Description
General Features
•Encoder single or multiturn / bus cover
•Magnetic sensing
•Single turn resolution: 12...19 bit
•Multi-turn 4...32 bit
•Clamping flange or synchro flange
•Permanent check of code continuity
•Extreme resistance to shock and vibration
•Modular fieldbus interfaces
•Profibus / CANopen
Flange Diameter: 58 mm,
Supply Voltage
Connection Type: M12/4pin,
Shaft Diameter : 6 mm, 8 mm, 10 mm,
Pulse
Output Circuit / Push-Pull
Product Group : Absolute Bus Cover Rotary Encoders,
Analog Output Type
Catalogs
FNC AC 58B Bus Cover Series
1 Pages
