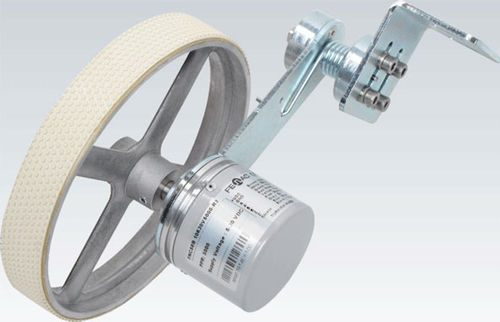

Flange linear encoder FNC WMSanalogaluminumrugged
Add to favorites
Compare this product
Characteristics
- Construction
- flange
- Output signal
- analog
- Material
- aluminum
- Protection level
- rugged, IP67, standard
- Housing diameter
58 mm
(2.28 in)
Description
General Features
•Industry 58 mm standard size, clamping flange
•Robust mechanical and electrical construction
•Protection to IP67
•Up to 25.000 PPR max.
•<300 k Hz frequency
Flange Diameter: 58 mm,
Supply Voltage : 5Vdc, 5-30Vdc,
Connection Type: 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/5pin, M23/12pin,
Shaft Diameter : 6 mm, 8 mm, 10 mm, 12 mm,
Pulse : 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 16384, 20000, 25000,
Output Circuit / Push-Pull
Product Group : Linear Encoders,
Analog Output Type
