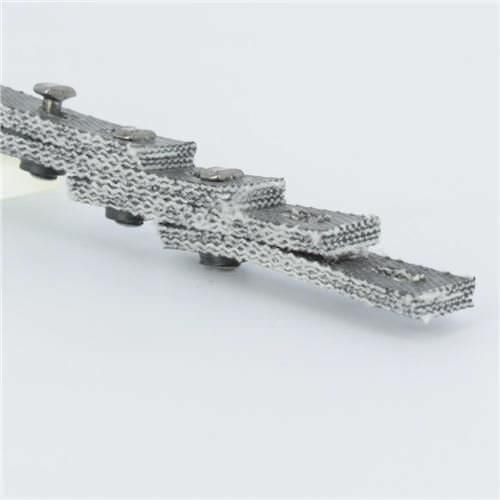

Trapezoidal belt NeoLink Z/10

Vneoprene®pulley

Incorporating our traditional Neoprene reinforced material, NeoLink embraces the well proven operational benefits of our original Veelos link belt product with the added advantage of a T-profile connecting stud for easy belt assembly and adjustment. Packaged in 10 meter boxes. Best Suited For: Bechler, Peterman, Star and Tornos Swiss screw machines. Today, the conventional installed base of Swiss screw machines around the world remains extensive. Over the last 30 years, link construction V-belts have been shown to be the ideal design for efficient machine operation and consistent finished part quality. Take advantage of NeoLink’s performance benefits: • Significant improvement in part surface finish and roundness as a direct result of reduced tool head chatter • Greatly enhanced resistance to cutting oils and elevated “drive in-cabinet” temperatures • Very easy installation on fixed center drives • No need to dismantle stepped drive set-ups for belt installation • Belt lengths can be optimally tuned for desired torque transmitted to tool head drive mechanism • Available in Z/10 and A/13 cross sections • Links connected with metal T-studs
