Oxygen analyzer

monitoringIP54control

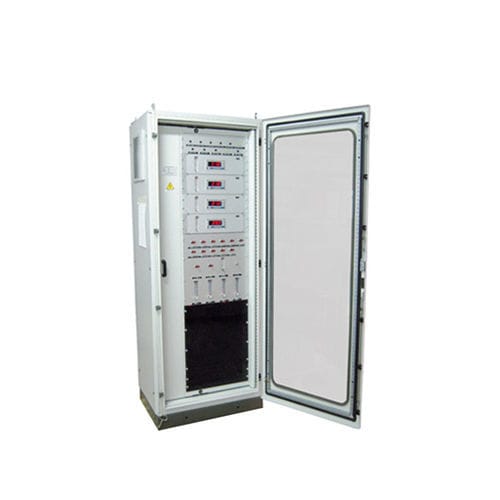

for explosion control multiplexing on 6 + 5 points with redundant analyzers Measured compounds O2 – Oxygen with n. 2 + 2 redundant analyzers based on Zirconium Oxide cell Mod. E705 Sampling and treatment system The system includes two separate analysis sections, one in cyclic scanning on 6 and the other one on 5 points N. 6 + 5 Probes with filter on head, n. 2 Peltier gas coolers and peristaltic pump for continuous operation, n. 2 High vacuum sampling pumps, Condensate monitor, Flowmeters with low flow alarm Monitored plant Dried resins transport Cabinet Painted metal sheet with double redundant conditioner for temperatures up to 45 °C IP54 protection rating Data processing Analogue and digital hardwired outputs
