Roller conveyor TRG seriesscrewhandlingmodular
Add to favorites
Compare this product
Characteristics
- Technology
- roller, screw
- Function
- handling
- Construction
- modular, compact, telescopic, gravity, height-adjustable
- Drive mechanism
- automatic
- Transported product
- for pallet
- Sector
- for the food industry, for the automotive industry, for logistics
- Other characteristics
- stainless steel
- Maximum load
1,200 kg
(2,645.547 lb)- Length
1,500 mm, 2,000 mm, 2,500 mm, 3,000 mm
(59.06 in, 78.74 in, 98.43 in, 118.11 in)
Description

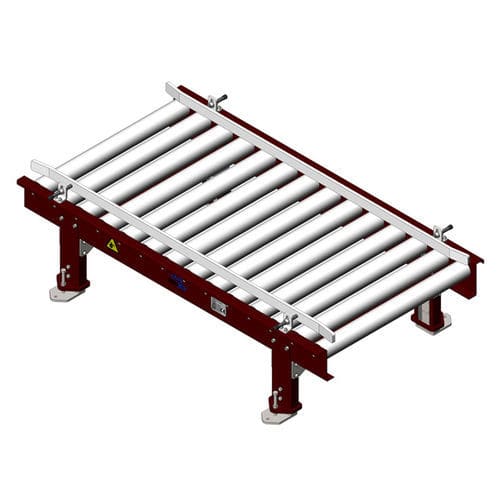

Gravity roller modular conveyor for handling empty or loaded pallets. Smooth and ongoing load progress on the conveyor. Extensive possibilities of manufacturing in accessories as in qualities.
Compact, modular design, totally expandable, assembled by screws. Low maintenance costs. Allow quick access to inspection or replacement of rollers.
• Robust, solid structure assembled by screws and made of galvanized steel in
thicknesses of 3 and 6 mm.
• Thermoplastic supporting feet for attachment, level and height are adjustable.
• D-89 mm zinc, metallic rollers of 3 mm thickness.
• Maximum load: 1200 kg.
• Manual adjustable pallet guides.
Optional equipment
• Structure finish:
– In pickled steel, painted in RAL colours of your choice.
– In AISI-304-AISI-316 stainless steel.
• Guide rollers.
• Telescopic metal legs.
• Set of brackets for detectors.
• Full automation for integration into an automatic line.
