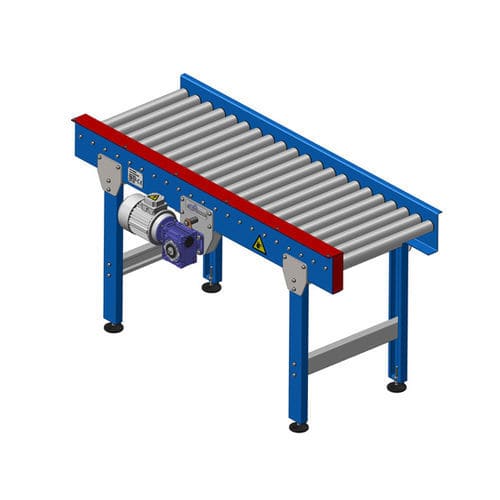

Driven roller conveyor TRM-PP series

screwstraightfor the food industry

Roller-driven straight modular conveyor for packing processes belongs to the support machines group. It can transport boxes, trays, plastic containers, packages…Rollers make a safe and quiet transport of the load. Extensive configuration options of design, sections can be added, different rollers steps, finishes… Compact, modular design, totally expandable, assembled by screws. Low maintenance costs. Allow quick access to inspection or replacement of rollers. • Robust, solid structure assembled by screws and made of galvanized steel in thicknesses of 3 and 6 mm. • Thermoplastic supporting feet for attachment, level and height are adjustable. • Step by step roller transmission torque by chain. • Gear motor of direct transmission and fixed velocity. Installed power: 0.37kw. • Structural features by load progressing guides, about 50 mm on the roll.. Optional equipment • Structure finish: – In pickled steel, painted in RAL colours of your choice. – In AISI-304-AISI-316 stainless steel. • Set of brackets for detectors. • Manual adjustable lateral guides. • Full automation for integration into an automatic line.
