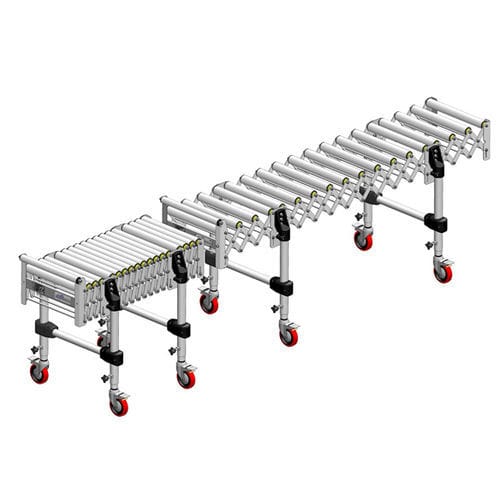

Roller conveyor TERD-50 series

screwinclinedcurved

Gravity roller extendible modular conveyor for handling boxes and trays. Fully configurable, it can be curved, inclined… according to the working needs. Ideal for preparing packing and connecting to a carton sealer. • Compact structure with a nice design made of galvanized steel standard tubes, with screwed connections onto thermo-plastic material with high resistance. • Galvanized steel progressive springs in 3 mm of thickness. • All springs pivot points have tie rods. • Telescopic legs with locking handle. • Rotating wheels with brake and anti-thread system. • PVC cylindrical rollers of 50 mm diameter. Optional equipment • Structure finish: – In pickled steel, painted in RAL colours of your choice. – In AISI-304-AISI-316 stainless steel. • Galvanized steel metallic rollers. • Adjustment stop with PVC roller. • Connection soleplate at the start of the conveyor.
