Linear gantry module HD

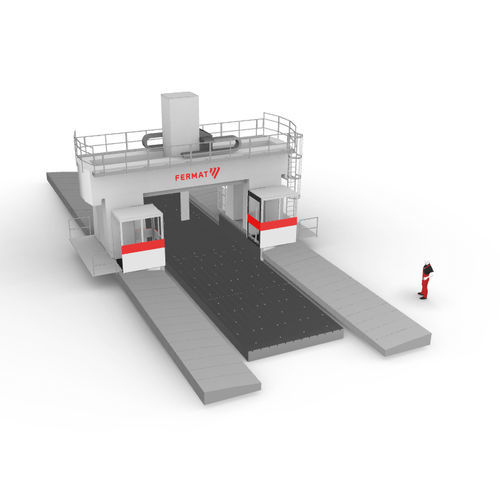

Gantry Heavy Duty is a machine designed for heavy and complex machining of extra large workpieces. The machine construction utilizes an "O" shape for the crossbeam and columns, which is characterized by high rigidity and precision. The integrated PICKup head and robotic magazine between the machine columns create significant time savings without the need to reposition the machine during exchanges. The unique spindle verified by its use on floor-type horizontal mills features a 1000mm extension in the W-axis. Multifunctional machine - drilling, milling, turning, grinding and laser-hardening. Ram stroke up to 2000 mm. Machine equipped with floor plates and rotary tables. Great variety of optional accessories and milling heads. Spindle diameter - mm - 160 Spindle taper - SK 50 (DIN, MAS 45°, ANSI)/BIG+/HSK100 Spindle speed (max.) - rpm - 2500 Max. Power Heidenhain or SIEMENS CNC (S1/S6) - kW - 74/91 Max. Torque Heidenhain or SIEMENS CNC (S1/S6) Nm - 3 349/4 120
