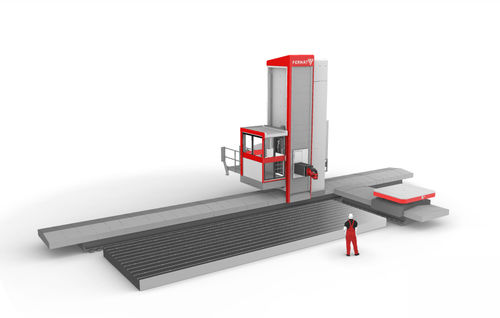

3-axis CNC milling machine WRF MILL
verticalwith rotary tablecolumn type

3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type
3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type
3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type - image - 2
3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type - image - 3
3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type - image - 4
3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type - image - 5
3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type - image - 6
3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type - image - 7
3-axis CNC milling machine - WRF MILL - FERMAT CZ s.r.o. - vertical / with rotary table / column type - image - 8
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with rotary table, column type
Spindle mount
HSK-100, SK50
Applications
for large workpieces
Other characteristics
precision
X travel

Min.: 4,000 mm
(157.48 in)

Max.: 28,100 mm
(1,106.3 in)

Rotational speed

5,000 rpm
(31,416 rad.min-1)

Power

43 kW, 53 kW, 60 kW, 77.9 kW
(58.46 hp, 72.06 hp, 81.58 hp, 105.91 hp)

Description

Floor-type milling machine for fast and precise milling and drilling of medium-size and large workpieces. Ram stroke 1500mm, optionally 2000 mm. Equipped with floor plate and rotary table. Wide variety of milling heads and other optional accessories. Equipped by Heidenhain, Siemens, FANUC control system Max. Torque Heidenhain or SIEMENS CNC (S1/S6) - Nm - 917 / 1274; 1591 /2338
