Hydraulic drum lifter DS FP 250

manualwith gripping toolwith hook

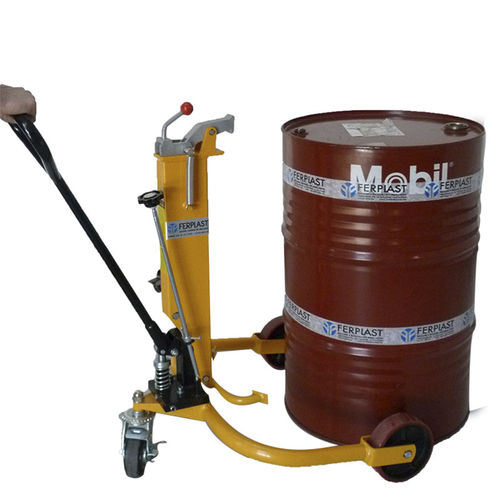

Hydraulic lift clamp for metal drums with automatic hooking. Capacity 250 kg. Hydraulic lifter mod. DS FP 250 with clamp suitable for lifting and handling metal drums with diameter 600 mm. The lifter is equipped with two fixed front wheels and a rotating rear wheel with brake. Operation The operator can automatically hook the metal barrel by simply approaching the lifter to the drum. If the drum should instead be empty, the operator can hook it by acting on the upper "hooking lever" (lever with red knob). You can lift the drum manually by pulling the handle down and lowering it by slightly unscrewing the hydraulic cylinder release lever. To release the drum, act on the upper hooking/release lever. The lifter is supplied complete with usage and maintenance manual and regular CE certification. MODEL DS FP 250 Dimensions mm. 800 x 770 Height mm. 1145/1360 Lift mm. 240 Maximum diameter shaft mm. 600 Maximum length of stalk mm. 915 Capacity Kg. 250 Weight Kg. 40 Number of wheels 2 fixed 1 rotating Diameter wheels mm. 180 - mm. 125
