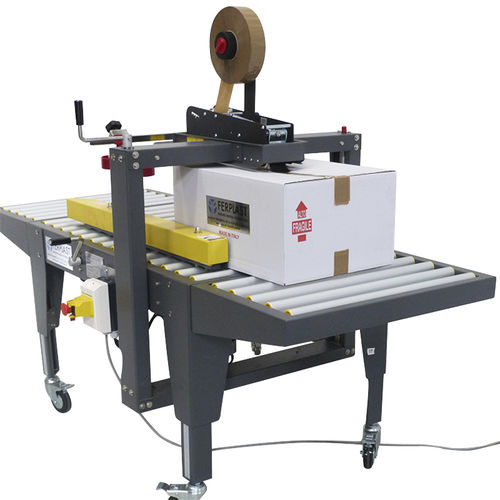

Double-flap case sealer FP 9036

adhesive tapesemi-automatic

Taping machines with side drive belt for closure of the bottom and top of boxes. Minimum height of boxes 100 mm.  Max. width mm 500. TAPING MACHINE MOD. FP 9036 WITH MANUAL ADJUSTMENT AND 2 LATERAL DRIVE BELTS The taping machines series FP9036 and FP9037 are used in semiautomatic lines for the quick and safe closure of boxes using adhesive tape. The two taping heads simultaneously apply a strip of tape above and below the box. Depending on the size of the boxes (height and width), the operator must adjust the taping machine using handy handwheels. In the FP9036 model the structure of the machine body is in painted steel sheet and the cartons are dragged through 2 side drive belts. The machine is complete with 2 idle roller conveyors attached to the taping machine with length mm 400 (for loading and unloading). It is equipped with wheels with brakes. Model FP 9036 Box size (Length x Width x Height) min. 150x120x100 mm max. unlimitedx500x500 mm Tape width 50mm PPL-PVC tape Speed 20 m/min 220V 50HZ 1-Phase power supply Power 0.25 kW Machine dimensions Width 900 mm Length 1080 mm (1880 with roller conveyors) Height 1470 mm (with taping head) Worktop height 580-780 mm Weight 113kg Left and right belt drive
