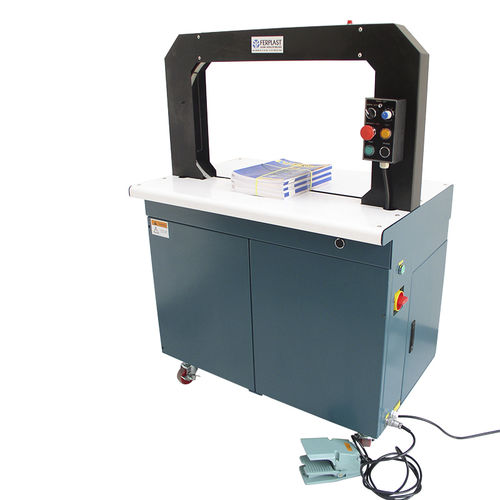

Semi-automatic strapping machine ESH201

for cardboard boxesfor cartonsfor parcel

High-speed machine for bookbinding, papermaking, box. Uses the strap width 5 mm. Arch 650x420. High-speed machine for book binding, papermaking, box and all sectors where high speed and reliability is required. It uses of the strap of 5 mm. The product is positioned manually on the working table and, with the foot control or button, the launch of the strap is activated. The strap in then stretched, heat-welded and cut. The holding capacity of strap depends on material type and on strap of choice. TECHNICAL - Compact design with reel inserted in the machine - High speed strapping, up to 40 cycles/minute - Low noise - Control cabinet with PLC Mitsubishi - Commands in low voltage (24volts) - Start button or by foot switch - Tension adjustment chosen among 5 different values according t​o strapping material - Strap presence sensor - Automatic loading of the strap: after changing the coil, put the strap in the feed roller and press the button; the machine automatically carries out all operations and it is ready for strapping. - Automatic strap re-launch in case of failure launch - Self-ejecting strap ring after accidental ligation without pack - Quick recovery device in case of jammed strap
