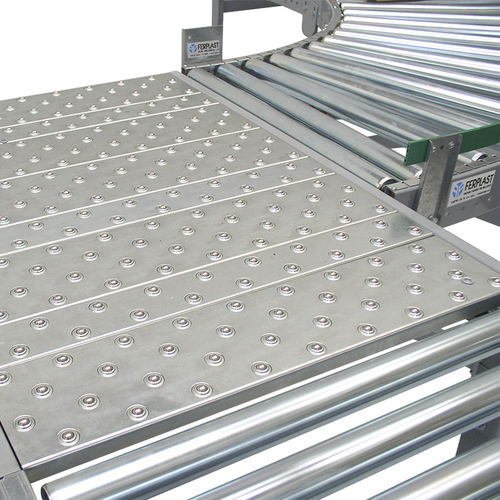

Ball transfer table PSFM SERIES

PLANS BEARING DIAMETER 12 mm Suitable to the handling of products with rigid bottom, allow to move with a push packages in any direction. Standard ball 12 mm. Suited to the handling of products with rigid bottom, allow to move with a push packages in any direction. Are normally used in semi-automatic lines where there are several discharge conveyors and the operator has to choose the direction that must take a specific product / package. The standard plans are made with ball diameters of 12 mm, wheelbase 37.5 in staggered rows. CHARACTERISTICS OF STANDARD BALL PLATES Profiled structure in painted sheet metal Galvanized support surface with seats for balls Epoxy powder painting (Ral 7001 gray) 2 adjustable supports - Height from 650 to 850 mm Ball diameter 12mm Ball distance mm 37.5 on staggered rows Orderable width (mm) 500 - 650- 800 Useful width mm 480 - 630 - 720 Total width mm 570 - 720 - 870 Orderable length mm 500 - 1000 - 1500 - 2000 Total length mm 525 - 975 - 1500 - 1950 Capacity Kg 100 per module
