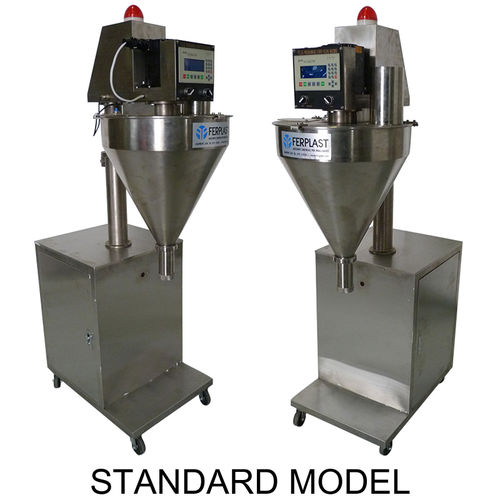

Semi-automatic filling machine FLG series
multi-containercontainerbag

Semi-automatic filling machine - FLG series - Ferplast - multi-container / container / bag
Semi-automatic filling machine - FLG series - Ferplast - multi-container / container / bag
Semi-automatic filling machine - FLG series - Ferplast - multi-container / container / bag - image - 2
Semi-automatic filling machine - FLG series - Ferplast - multi-container / container / bag - image - 3
Semi-automatic filling machine - FLG series - Ferplast - multi-container / container / bag - image - 4
Add to favorites
Compare this product

Go to the Ferplast website for more information

Characteristics

Operational mode
semi-automatic
Container type
multi-container, container, bag, for jars, for glass containers, tray
Product applications
for powders, for granulates, coffee, powder, for pellets, fertilizer
Domain
for the food industry, for the pharmaceutical industry, for the cosmetics industry, for the chemical industry, laboratory
Type
volumetric, vertical, gravity, screw
Other characteristics
PLC-controlled, net weight
Throughput

Max.: 15 p/min

Min.: 2 p/min

Volume

Max.: 5,000 ml
(169.1 US fl oz)

Min.: 1 ml
(0 US fl oz)

Capacity

Max.: 30 kg
(66.14 lb)

Min.: 25 kg
(55.12 lb)

Machine length

Max.: 900 mm
(35 in)

Min.: 850 mm
(33 in)

Machine width

Max.: 550 mm
(22 in)

Min.: 500 mm
(20 in)

Machine height

Max.: 1,700 mm
(67 in)

Min.: 1,500 mm
(59 in)

1,500 mm, 1,600 mm, 1,650 mm, 1,700 mm
(59 in, 63 in, 65 in, 67 in)

Machine weight

Max.: 250 kg
(551.16 lb)

Min.: 150 kg
(330.69 lb)

150 kg, 200 kg, 250 kg
(330.69 lb, 440.92 lb, 551.16 lb)

Description

Vertical auger volumetric dosing for non-sliding powders, stainless steel AISI 304 construction. Max. capacity from 100 to 5000 ml. Vertical augervolumetric dosingfor non-sliding powdersuch as flour, cocoa, sugar, ground spices, coffee, finely ground, chemicals, premixedbuilding,ice creamor sorbet, etc.. - Rugged stainless steel with basic overview - Product loading hopper in stainlesssteel AISI304 with inspection hatch - Start with electric-operated pedal - Electrical panelwith PLC Optional: - Loading hopper with motorized system The stainless steel outer hopper allows loading the product at a height of about 900 mm from the floor, this reduces stress and significantly increases operator safety. The motorized auger transports the product to the height of the doser hopper and discharges. A volume sensor interrupts the feeding of the hopper when the doser tank is full. - Hopper with rectangular section TR01 to choose during the order. - Stainless steel spport with feet The standard dispenser has a discharge height of mm. 620 and is suitable to be placed on a bench. It is possible to buy the raised support with feet / wheels that allows to reach a discharge height of mm. 970 - Height-adjustable bags support Only available for purchase with support (Acc-SUPP or Acc-SUPPRT) - Support wheels equipped with brake.
