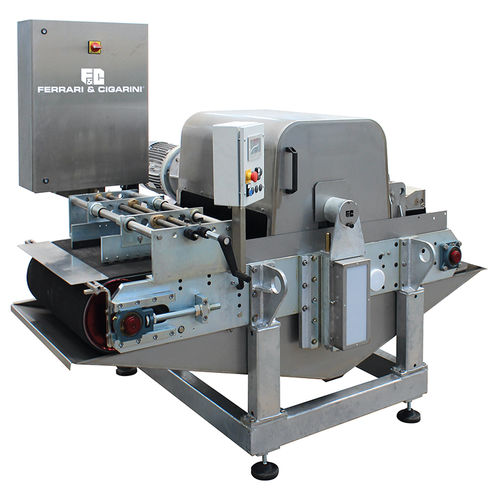

Rotary blade cutting machine MTX 700/1

for granitefor marbleblocks

MTX 700/1 is a one-head multi-disc cutting machine, and it is used for reject recovery in marble; it is very rugged with a shaft to hold the discs which is mounted by both sides to obtain stability and lack of vibrations. This solution allows to cut in one run the materials of big thickness. On the shaft that holds the discs, it is possible to mount more than one cutting disc spaced by proper separators in order to obtain different sizes. The conveyor belt of piezes in rubber with high adhesion is large 700mm and its speed is adjustable through inverter. The head is adjustable vertically with an electric control. With an adequate motor it allows to cut till 80/100 mm of thickness. The cutting speed of 1/7 ml/min is adjustable electrically with a manual control for different thickness.
