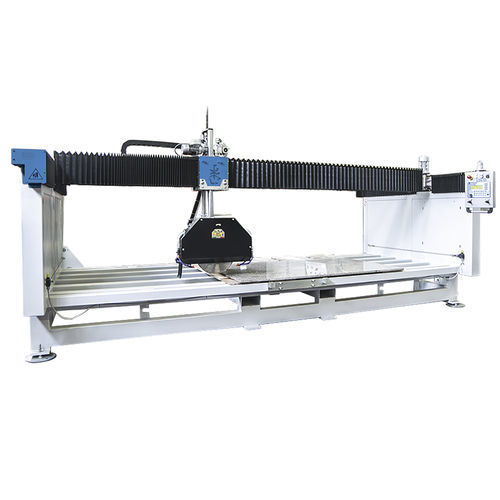

Rotary blade cutting machine GIANT Afor composite materialsfor granitefor marble
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for marble, for granite, for composite materials
- Product handled
- sheet
- Applications
- for industrial applications
- Other characteristics
- semi-automatic
- Overall length
5,460 mm
(215 in)- Overall width
2,200 mm
(87 in)- Height
2,170 mm
(85 in)- Weight
1,800 kg
(3,968.32 lb)
Description
Automatic machine to cut both length ways (X axis) and cross ways (Y axis). The cutting head is driven by means of the PLC integrated in the hanging panel on board the machine and the cutting head speed is driven by inverter. Turning and inclination of the head is manual, from 0 to 90 degree by means of a handwheel. The machine is equipped with marine ply wooden bench with integrated lifting rollers for multidirectional slabs positioning.
