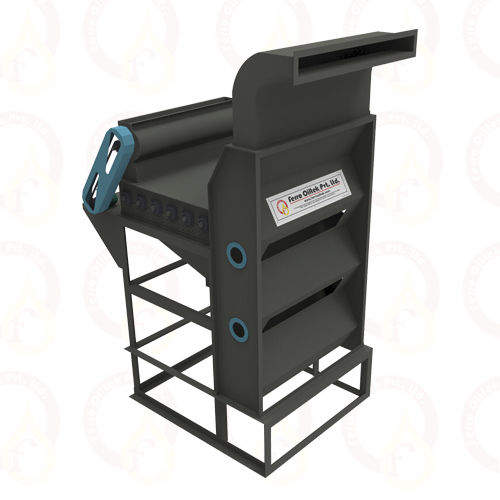

Density separator FX-DSHC

centrifugaloilprocess

Ferro Density Separator is specially design to allow complete separation ofa variety products based on their density. It is the combination of densityseparator & basket beater separator for better operational results & low oilloss in hulls. The density separator consists of variable speed regulatingfeeder driven by suitable gear motor. The specially designed insidestructure is suitable for separating the uncut seed, large hulls, and meatpowder. Equipment is capable to maintain low oil in hulls. Mixture of large hulls, meat & uncut seed fed into the density separator for separating on the basis of density that all are coming out from decorticator machine. First the mixture is fed into 6 stage basket beaters through variable speed regulating feeder, by beating operation sticky meat separated from hulls & drop down by screen of basket. Remaining hulls & uncut seed are move forward into zig zag chamber, where uncut seed drop down because of high density, and low density hulls removed from top of zig zag chamber. Separate out fine meat from basket, meat mesh gets collected in common meat conveyor. Further uncut seeds returns to decorticator and hulls which is pneumatically lifting, that goes for final hulls purifier machine. • Due to use of adjustable Air Damper System, air flow can be controlled. • Heavy structure results in zero vibration. • Common drive motor for all beater drive. • Efficient aspiration system for hulls lifting
