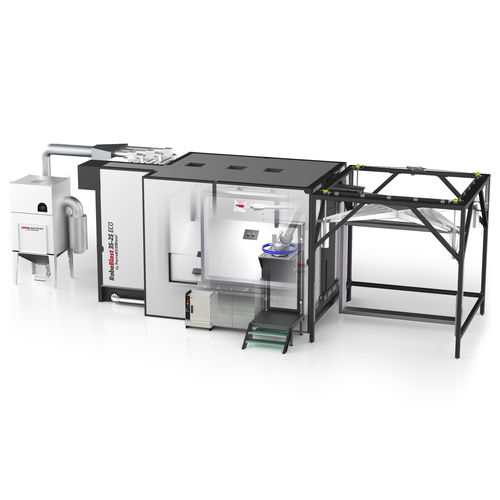

Pressure blast cabinet

roboticconveyor

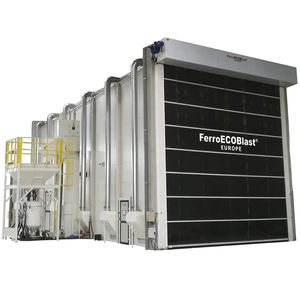

Robotic Abrasive Blast Rooms for Industrial Surface Finishing A customer wants to have a fully automatized process so the operator won't have contact with the blastinFg process. Parts must be blasted controllable and without mistakes, with gentle roughening for better adhesion of paint. We have designed a cell with a turn station. Blasting cell has pneumatic collecting and recycling of abrasive. Manipulation of a part is automatic on hang transporter. The cell has 1 robot with two nozzles, but there is provided space for 2 robots. A robot has space for more than 100 recipes. It is equipped also with a remote control unit. Energy Efficient Fully enclosed design minimizes energy consumption - Safety Non-slip flooring and climate-controlled helmets ensure operator safety - Durable Construction Abrasion-resistant walls and bright lighting for optimal visibility. - Regulatory Compliance Designed to meet EU norms and can include ATEX compliant equipment. The way this machine is built, it allows blasting of two or three doors/frames at once. The conveyor is driven by the robot so he can manipulate with the items in the way that they are in good position for him. Blasting is done with two blasting nozzles so we can get as much coverage as we can. At the end of the process when the conveyor is travelling back to the rotation unit the robot is air cleaning the doors. Features: Blasting controllable and without mistakes Automatic 1 robot with two nozzles Blasting of 2 or 3 doors at once Possibility of upgrading to the second robot Benefits: lower manipulation costs always same quality faster delivery time better quality of a finished product controlled process
