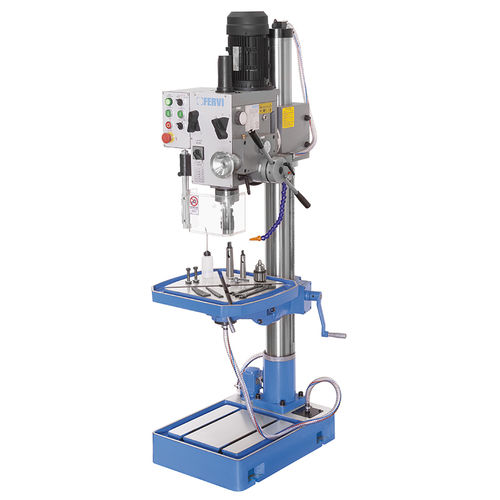

PLC-controlled drilling machine T041DAverticalcolumn typefor steel
Add to favorites
Compare this product
Characteristics
- Type
- PLC-controlled
- Structure
- vertical, column type
- Applications
- for steel
- Drilling diameter
Max.: 40 mm
(1.57 in)Min.: 30 mm
(1.18 in)- Power
1,500 W
- Rotational speed
Max.: 3,200 rpm
(20,106.2 rad.min-1)Min.: 75 rpm
(471.2 rad.min-1)- Weight
340 kg
(750 lb)
Description
REVERSIBLE, TILTING HEAD, COOLING SYSTEM, TIMED TAPPING AND AUTOMATIC DOWN FEED, ROTATING TABLE.
Tapping capacity
22 mm
Spindle taper
MT 4
Chuck sizes
1 ÷ 16 B16
Spindle speed
(12 ) 75 ÷ 3200 rpm
Spindle travel
120 mm
Spindle rotation
Dx - Sx
Head tilt left and right
±60°
Quill
Ø 76 mm
Column
Ø 115 mm
Feed range
(3) 0,1 - 0,18 - 0,26 mm/g
Distance between spindle axis and column
297 mm
Distance between spindle nose and table
715 mm
Distance between spindle nose and base
1180 mm
Table dimensions
500 x 460 mm
Slot
14 mm
Base dimensions
470 x 670 mm
Motor
400 V 50 Hz 1,1/1,5 kW
Dimensions
700 x 480 x 1850 mm
