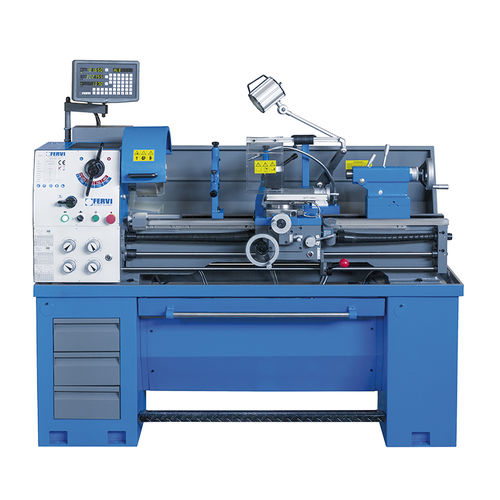

3 AXIS READ OUT AND SEMI NORTON GEAR BOX. TURNING BAR WITH ADJUSTABLE CLUTCH.
Centers height
190 mm
Max swing over the bed
380 mm
Max swing over the cross slide
225 mm
Max swing over the gap
503 mm
Tool height
20 mm
Distance between centers
1000 mm
Spindle bore
51 mm
Spindle nose Camlock
Camlock D1-5
Spindle bore taper MT
6
Spindle speed
70 ÷ 2000 rpm
Longitudinal feeds
0,052 ÷ 1,392 mm/rev
Cross feeds
0,014 ÷ 0,380 mm/rev
Metric threads
0,4 ÷ 7 mm
Inch threads
4 ÷ 56 TPI
Tailstock taper MT
4
Motor
400V 50 Hz 1,5 kW
Dimensions
1800 x 800 x 1600 h mm
Net weight
640 kg
Packaging dimensions
1930 x 760 x 1600h mm
Gross weight
687,00 kg
