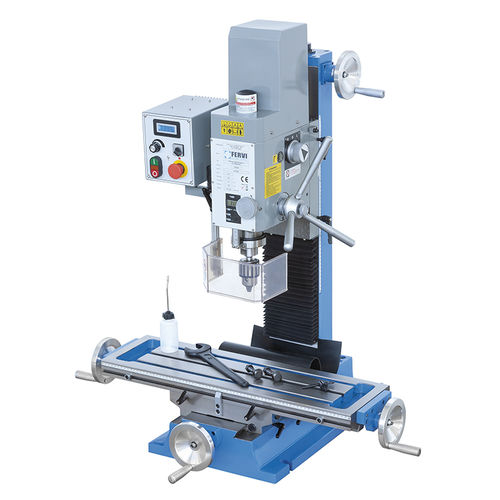

Steel drilling and milling machine T059/28Vvariable speed
Add to favorites
Compare this product
Characteristics
- Applications
- for steel
- Other characteristics
- variable speed
- Drilling diameter
28 mm
(1.1 in)- Power
1,100 W
- Rotational speed
Max.: 2,500 rpm
(15,708 rad.min-1)Min.: 100 rpm
(628.3 rad.min-1)- Weight
270 kg
(595 lb)
Description
VARIABLE SPEED, WITH DIGITAL DISPLAY OF SPINDLE SPEED AND DIGITAL DISPLAY OF DEPTH.
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 28 mm
Face milling cutter max
Ø 63 mm
End milling capacity
Ø 28 mm
Spindle taper
CM 3
Chuck sizes
3 - 16 mm B16
Spindle speed
100 ÷ 2500 rpm ±10%
Spindle rotation
L - R
Spindle stroke
70 mm
Quill
70 mm
Headstock travel
380 mm
Head tilt left and right
±90°
Table dimensions
730 x 210 mm
Slot
14 mm
Longitudinal axis
190 mm
Cross axis
440 mm
