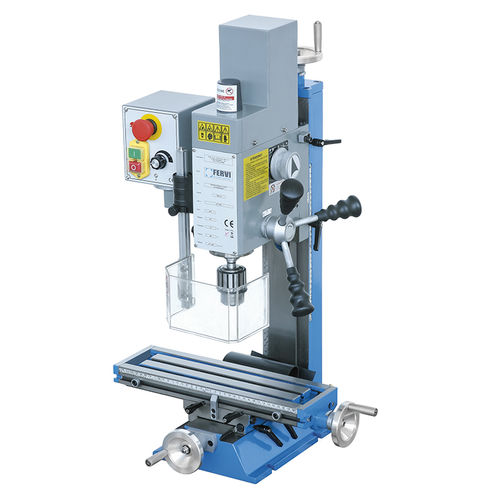

Steel drilling and milling machine T059/16Vvariable speed
Add to favorites
Compare this product
Characteristics
- Applications
- for steel
- Other characteristics
- variable speed
- Drilling diameter
16 mm
(0.63 in)- Power
500 W
- Rotational speed
Max.: 3,000 rpm
(18,849.6 rad.min-1)Min.: 100 rpm
(628.3 rad.min-1)- Weight
72 kg
(159 lb)
Description
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 16 mm
Face milling cutter max
Ø 50 mm
End milling capacity
Ø 16 mm
Spindle taper
CM 2
Chuck sizes
1 - 13 mm B16
Spindle speed
I 100 ÷ 1500 rpm ±10% | II 200 ÷ 3000 rpm ±10%
Spindle stroke
50 mm
Spindle rotation
Dx
Headstock travel
210 mm
Head tilt left and right
±90°
Table dimensions
400 x 120 mm
Slot
10 mm
Longitudinal axis
160 mm
Cross axis
220 mm
