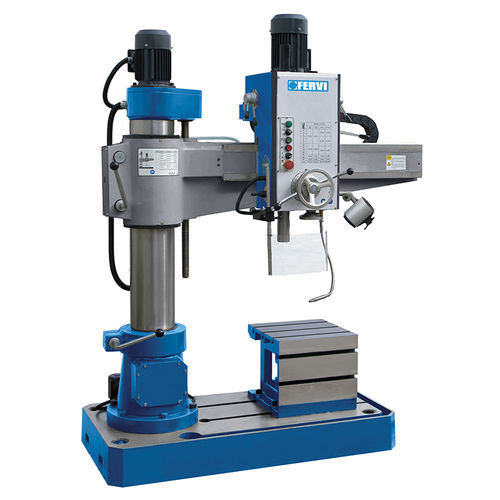

Radial drilling machine TR01/200

for steel

REVERSIBLE, WITH AUTOMATIC FEEDING, COOLANT SYSTEM, EQUIPPED WITH LED LIGHT. WITH GEAR SPEED CHANGE. Spindle taper MT 4 Chuck sizes 3 ÷ 13 mm B18 Spindle travel 240 mm Quill 70 mm Column 200 mm Distance between spindle axis and column 1020 mm Distance between spindle nose and table 860 mm Distance between spindle nose and base 1210 mm Feed range (3) 0,1 - 0,16 - 0,25 mm/rev Cube dimensions 400 x 400 x 350 mm Slot 18 mm Base dimensions 1370 x 700 mm Motor 400 V 50 Hz Lifting motor radial arm 400 V 50 Hz 0,75 kW Cooling pump 400 V 50 Hz 90 W Dimensions 1760 x 770 x 2100h mm
