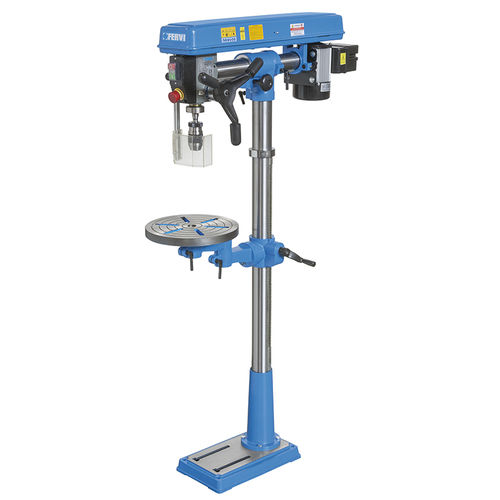

Drill press 0857radialelectricvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type, radial
- Power source
- electric
- Other characteristics
- variable-speed
- Rotational speed
Min.: 300 rpm
(1,885 rad.min-1)Max.: 2,550 rpm
(16,022.1 rad.min-1)- Power
375 W
- Voltage
230 V
- Drilling diameter
Min.: 12 mm
(0.47 in)Max.: 20 mm
(0.79 in)
Description
ROTATING AND TILTING TABLE WITH DOUBLE ARM, TILTING HEAD, ELECTRICAL SYSTEM WITH SEPARATE 24V CIRCUIT FOR ON-BOARD MACHINE CONTROLS.
Spindle taper
CM 2
Chuck sizes
1 - 16 mm B16
Spindle speed
Spindle travel
65 mm
Quill
ø 40 mm
Column
ø 72 mm
Sliding travel
280 mm
Head tilt left and right
90º L ; 45º R
Height
1600 mm
Distance chuck-column
375 mm
Distance between spindle nose and base
1290 mm
Table dimensions
ø 290 mm
