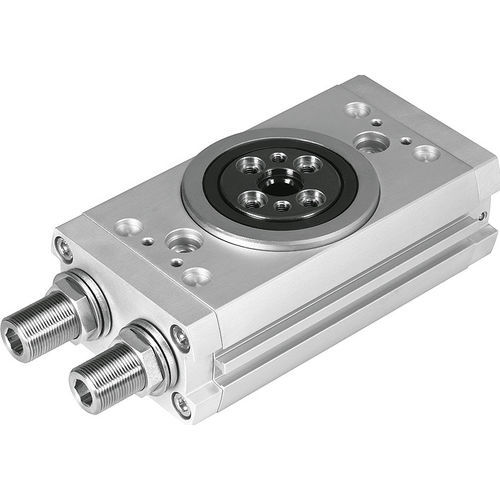

Semi-rotary actuator DRRD series pneumaticdouble-pistondouble-acting
Add to favorites
Compare this product
Characteristics
- Movement
- semi-rotary
- Type
- pneumatic
- Technology
- double-piston
- Configuration
- double-acting
- Other characteristics
- precision, high load capacity
- Pressure
Min.: 3 bar
(43.5 psi)Max.: 8 bar
(116 psi)- Torque
Min.: 0.2 Nm
(0.148 ft.lb)Max.: 112 Nm
(82.607 ft.lb)- Ambient temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
Double piston rotary actuator on rack and pinion basis.
• Twin-piston rotary actuator, power transmission via rack and pinion principle
• Very high accuracy in the end positions
• Very high load-bearing capacity
• Very good axial run-out at the flanged shaft
• Greater stability even with smaller sizes
• Sustainable in production due to reduction of material use
