Compressed air fitting NPQR series
push-instainless steelchemical-resistant

compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
Add to favorites
Compare this product


Characteristics

Applications
for compressed air
Attachment
push-in
Material
stainless steel
Other characteristics
chemical-resistant, vacuum, robust, high-temperature, corrosion-resistant
Diameter

Max.: 16 mm
(0.63 in)

Min.: 4 mm
(0.157 in)

Operating pressure

Max.: 16 bar
(232.06 psi)

Min.: -0.95 bar
(-13.78 psi)

Description

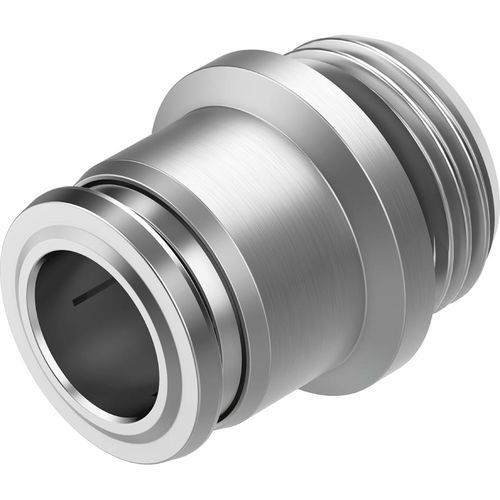

Robust push-in fitting NPQR in stainless steel: With reduced dirt-collecting edges and high resistance to most media, it is ideal for the food and beverage industry, but also for other applications in process manufacturing, battery production, and the automotive industry. • Very easy-to-clean thanks to chambered O-ring and fewer edges that accumulate dirt • Optimal price/performance ratio, ideal for applications from a single source • Stainless steel • Operating media: compressed air, vacuum, (water)
