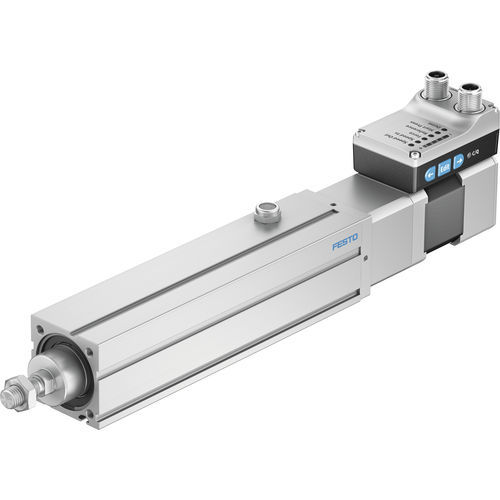

Electric cylinder EPCS series ball screwdouble-actingstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- ball screw
- Configuration
- double-acting
- Material
- stainless steel, aluminum
- Voltage
- 24-volt
- Protection class
- IP40
- Other characteristics
- compact, positioning, high-performance, small, with brake
- Stroke
Max.: 500 mm
(19.685 in)Min.: 25 mm
(0.984 in)- Force
Max.: 900 N
Min.: 75 N
- Speed
Max.: 0.2 m/s
(0.66 ft/s)Min.: 0.1 m/s
(0.33 ft/s)- Max acceleration
Max.: 5 m/s²
(16.4 ft/s²)Min.: 0.5 m/s²
(1.64 ft/s²)- Ambient temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Repeatability
0.02 mm
(0.0008 in)
Description
Extremely low-cost yet high-performance and highly flexible: EPCS. With this the simplicity of pneumatics is combined with the benefits of electrical automation. Highly compact, ideal for small installation spaces. EPCS can be configured simply – without any software!
• Complete solution consisting of integrated actuator, motor and servo drive
• Extremely cost-effective, yet powerful and highly flexible
• Ideal for individual linear movements in every installation position and especially for vertical Z movements
• Precise positioning due to smoothly running ball screw drive
• Compact dimensions
• Safe movement due to flexible position sensing
• Integrated end position sensing
• Two control options integrated as standard: digital I/O and IO-Link
• Easy commissioning according to the plug and work principle: all parameters are manually adjustable directly on the actuator without any software or special expertise required
• Three sizes with a max. stroke of 500 mm
• Product of the Simplified Motion Series: does not need any external servo drive or any control cabinet for the installation
