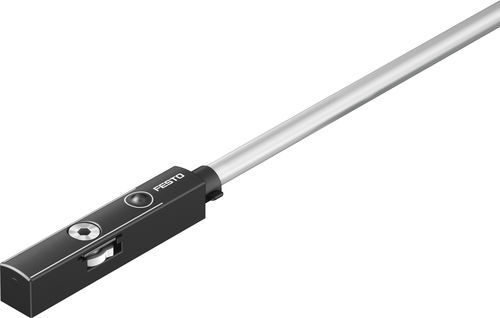

Magnetic proximity switch SDBT-MSX seriesrectangularPNP24 Vdc
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic
- Shape
- rectangular
- Output signal
- PNP
- Supply voltage
- 24 Vdc
- Protection level
- IP68
- Other characteristics
- with LED light, programmable
- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Magnetoresistive proximity switch for T-slot, can be inserted from above; the quickest, easiest and safest commissioning without power supply, without fine tuning and without readjustment: Auto teach-in, programmable
• Measuring principle: magnetic Hall
• Auto teach-in: automatic teach-in of the switching point at system start-up
• Programmable: PNP/NPN, NO/NC and switching window width between 2 ... 15 mm
• Can be inserted into the slot from above, secured with screw
• LED status indications
• Cable length 0.3 ... 5 m
