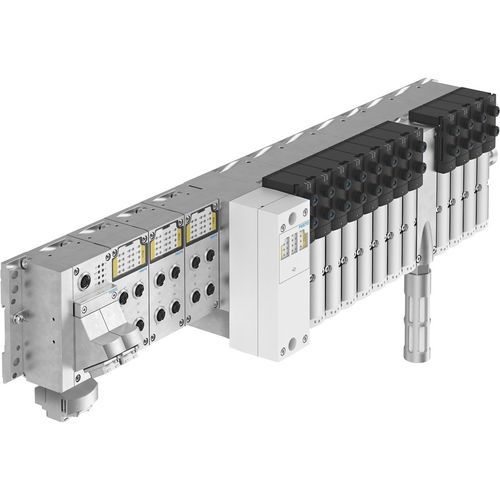

Pneumatic valve terminal VTSA-F-FB

2/2-way5/2-way5/3-way

Flow-optimised valve terminal with electrical peripherals Valve size 65 mm Pneumatic working port G1/8 G1/4 G3/8 G1/2 QS-6 QS-8 QS-10 QS-12 QS-14 QS-16 Electrical actuation Ethernet Fieldbus Integrated controller Max. no. of valve positions 32 Max. no. of pressure zones 16 Electrical I/O system yes Ambient temperature -5 °C ... 50 °C Certification BIA C-Tick c UL us - Recognized (OL) C characters KC EMC CE marking (see declaration of conformity) As per EU EMC directive as per EU explosion protection directive (ATEX) UKCA marking (see declaration of conformity) To UK instructions for EMC To UK RoHS instructions ATEX category gas II 3G Type of ignition protection for gas Ex nA IIC T3 X Gc Explosive ambient temperature -5°C <= Ta <= +50°C Exhaust air function Via throttle plate Actuation type Electrical Valve terminal type 45 Structural design Piston gate valve Pilot air supply port External Internal Valve manifold design Modular, pneumatic valve sizes can be mixed Signal status display LED Suitability for vacuum yes Nominal operating voltage AC 110 V Nominal operating voltage DC 24 V Permissible voltage fluctuations +/- 10 % Explosion prevention and protection Zone 2 (ATEX) Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 0 - No corrosion stress Storage temperature -20 °C ... 60 °C
