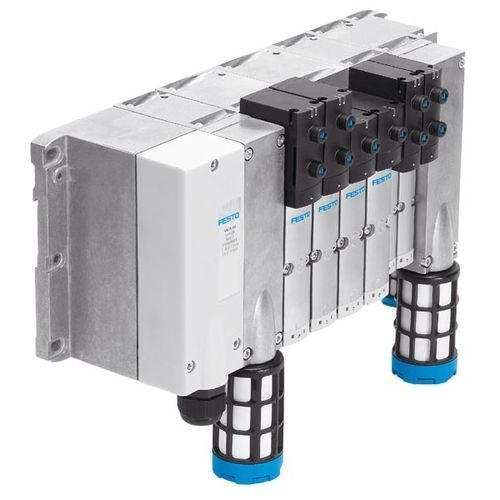

Pneumatic valve terminal VTSA-MP

2/2-way5/2-way5/3-way

For any number of pressure zones and compressed air supplies to ISO standard Valve size 52 mm Pneumatic working port G1/8 G1/4 G3/8 G1/2 QS-6 QS-8 QS-10 QS-12 QS-14 QS-16 Electrical actuation Multi-pin IO-Link® Max. no. of valve positions 32 Max. no. of pressure zones 32 Ambient temperature -5 °C ... 50 °C Certification BIA C-Tick c UL us - Recognized (OL) KC characters KC EMC CE marking (see declaration of conformity) As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU low voltage directive UKCA marking (see declaration of conformity) To UK instructions for EMC To UK instructions for electrical equipment To UK RoHS instructions ATEX category gas II 3G ype of ignition protection for gas Ex nA IIC T3 X Gc Explosive ambient temperature -5°C <= Ta <= +50°C Exhaust air function Via throttle plate Actuation type Electrical Valve terminal type 44 Structural design Piston gate valve Pilot air supply port External Internal Valve manifold design Modular, pneumatic valve sizes can be mixed Signal status display LED Suitability for vacuum yes Nominal operating voltage AC 110 V Nominal operating voltage DC 24 V Permissible voltage fluctuations +/- 10 % Explosion prevention and protection Zone 2 (ATEX) Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 0 - No corrosion stress Storage temperature -20 °C ... 60 °C Relative air humidity 0 - 90 % Note on materials RoHS-compliant
