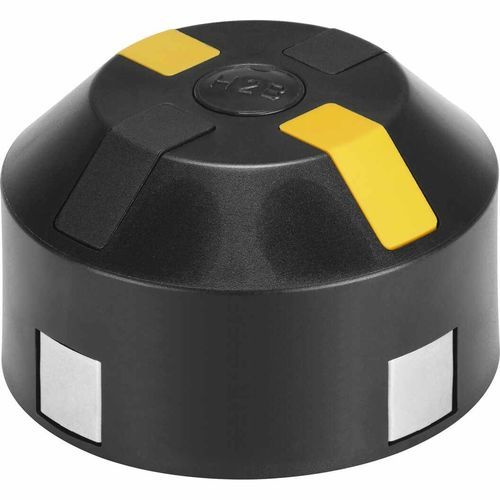

Compact position switch SASF

intrinsically safeATEXcost-effective

The position indicator SASF can be combined with the sensor box SRBG for compact and cost-effective indication of the positions of process valves. Also available in intrinsically safe versions in accordance with ATEX and SIL2. • For SRBG, SRBI, SRBC limit switch attachments • Variants for mounting on drive shafts of standard drives according to VDI/VDE 3845 • Variants with adjustable swivel angle • Variants for clockwise and anticlockwise rotating actuators with 90° and 180° rotation • Variants with position indicator in yellow/red, I, T, L design or with 180° arrow Limit switch boxes SRBG are the compact solution when it comes to electrical feedback signals and monitoring the position of process valves which are actuated with pneumatic quarter turn actuators. They can be mounted directly without other accessories on quarter turn actuators with a mounting interface to VDI/VDE 3845. Direct mounting means that they require minimal space. Innovative • Direct mounting on quarter turnactuators to VDI/VDE 3845 • No adjustment is necessary whenmounting the sensor • LED on-site indication of the switching status, supply voltage andsolenoid valve output • For clockwise and anticlockwiserotating actuators with 90° and180° rotation Design • Inductive double sensor • Compact plastic housing • PNP, NAMUR, 2-wire DC, AS-Interface switching outputs • Direct mounting on quarter turn actuators to VDI/VDE 3845 • M12 plug or clamped terminal connection • LED on-site status display • IP67 • cULus Listed, General Purpose • Intrinsically safe Ex ia version • SIL 2 to IEC 61508
