for industrial applications, for the chemical industry, industrial, process, liquids, for explosive atmospheres, for pipelines, for pipe, for vacuum, for powders, for cisterns, for effluents, for cylinders, for hazardous environments
Number of channels
2/2-way, 2-way
Associated function
discharge
Other characteristics
bidirectional, ISO, standard, with lockable toggle, flameproof, waterproof, ANSI, pressure seal, zero-bleed, for medium-viscosity products, automatic, for corrosive fluids, corrosion-resistant, anti-static, pneumatically-operated, double-acting, single-acting, with double pneumatic actuator, for corrosive environments, pneumatic-drive, pre-assembled, heavy-duty, piggable, solids, for aggressive media, grease, quarter-turn, high-flow, rugged, for explosive atmospheres, ATEX, chemical-resistant
DN
Min.: 15 mm (0.591 in)
Max.: 100 mm (3.937 in)
Pressure
20 bar (290.1 psi)
Temperature
Min.: -20 °C (-4 °F)
Max.: 200 °C (392 °F)
Flow rate
Min.: 8.5 m³/h (300.17 ft³/h)
Max.: 2,078.3 m³/h (73,394.47 ft³/h)
Description

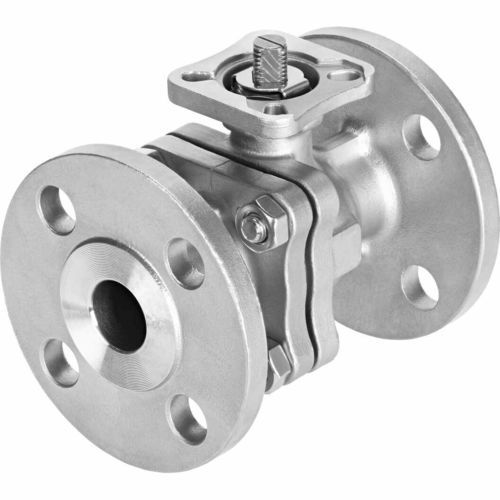

The two-part stainless steel ball valve for liquid and gaseous media is easy to maintain. Its fire safe design complies with the requirements of API 607.
• Flanged connections to ANSI B 16.5. class 150
• Static discharge assured
• API 607 Fire Safe certification
• Stainless steel design
• Easy to service
• Optionally with pre-assembled hand lever
