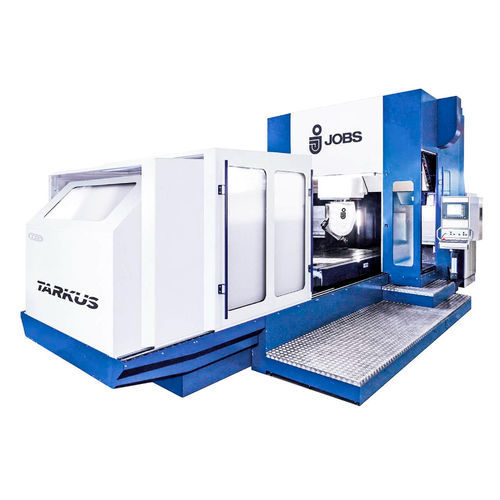

5-axis CNC milling machine JOBS TARKUS

verticalhorizontalwith moving table

JOBS Tarkus is the horizontal or vertical milling center for 5-axis, high-performance machining of parts made of tough materials like titanium, Inconel, stainless steel, special steel and alloy steel. JOBS Tarkus milling machines are ideal for job shops seeking milling solutions for heavy machining with large chip removal volumes as well as high performance and precision for the aviation industry, general precision engineering and the mold and die sector. ADVANTAGES HOW TO BENEFIT FROM JOBS TARKUS HIGH-PERFORMANCE MILLING CENTERS TOP PERFORMANCE JOBS Tarkus high-performance milling centers are convincing due to their high chipping capacity (up to 42 kW) and high dynamic in acceleration and speed (up to 24 m/min). JOBS Tarkus milling machines provide consistent precision during milling. There is a choice of a continuous milling head with 2 mechanically driven axes (up to 42 kW and 1,470 nm, 3,000 or 6,000 rpm) or electro-spindles with 15,000 or 27,000 rpm. JOBS Tarkus milling centers are convincing due to their innovative dual-frame HV architecture with a fixed gantry on the X-axis (3,300/4,500 mm) and a movable traversing unit on the Z-axis. This solution guarantees constant rigidity across the entire work volume – without a Z-slide. HIGH FLEXIBILITY JOBS Tarkus milling centers offer comprehensive configuration options like different milling heads or electro-spindles, a chain tool magazine with 32 to 64 spaces and other magazines with a static configuration and up to 180 spaces. Various cooling and presetting systems are also available.
