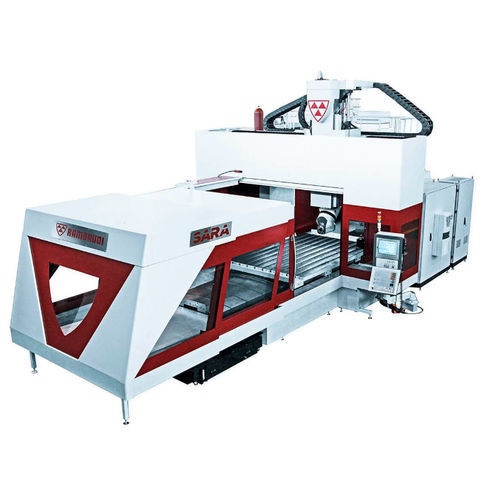

3-axis CNC milling machine RAMBAUDI SARA

universalgantrywith moving table

The Rambaudi Sara universal milling center is the result of a joint project between the brands Rambaudi and Sanco and offers a fixed gantry with movable table. This universal milling machine has features including high torque at low speeds as well as high rigidity and precision. Especially for suppliers, the Rambaudi Sara is thus the perfect milling solution for machining mechanical structures as well as tools and molds. ADVANTAGES HOW TO BENEFIT FROM RAMBAUDI SARA UNIVERSAL MILLING CENTERS Rambaudi Sara universal milling machines offer a stable design. The steel bed with its lattice structure dampens vibrations and prevents overheating. The built-in traveling table made of Meehanite® cast iron moves along the X-axis and carries workpieces weighing up to ten tons. The fixed gantry with movable table consists entirely of cast iron and has axis travels of X = 3,200 mm, Y = 2,400 mm and Z = 900 mm. Speed on the linear axes of 24 m/min and a movable table measuring 3,000 x 2,000 mm enable top performance and maximum precision. FLEXIBLE USE The Rambaudi Sara universal milling center can be equipped with an indexed universal milling head (up to 33 kW output and 5,000 rpm speed) for top performance when milling. A comprehensive range of accessories caters for a wide range of applications. IDEAL ERGONOMICS Rambaudi Sara universal milling machines offer a particularly ergonomic cabin for effective protection from chips and fluid. Linear guides ensure high rigidity, low friction and quiet operation.
