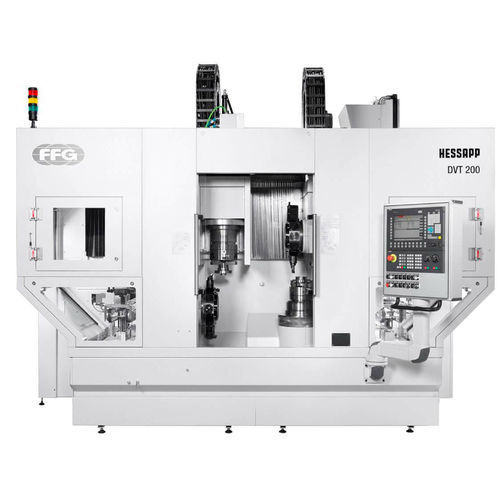

CNC turning center HESSAPP DVT series

vertical12 toolsfor automotive applications

Hessapp DVT pick-up vertical turning machines represent uncompromising complete machining with the highest precision for subsequent processing. Instead of two interlinked stand-alone machines involving automation and turning station, only one DVT is needed to machine workpieces with top precision from two sides. This involves a part being transferred to the next chuck in the clamped state without any loss in position. Compact DVT pick-up turning machines also require significantly less space compared to two stand-alone machines with a connection and turning station. ADVANTAGES HOW TO BENEFIT FROM HESSAP DVT PICK-UP VERTICAL TURNING MACHINES ENHANCED PERFORMANCE Hessapp DVT pick-up vertical turning machines enable the machining of workpieces with diameters up to 630 mm, in the case of swing diameters up to 750 mm, and workpiece heights (with clamping devices) up to 600 mm. Drives with up to 80 kW output and up to 2,950 Nm torque ensure ideal cutting performance. GREATEST OVERALL EFFICIENCY Hessapp DVT pick-up vertical turning machines with integrated, automatic loading and unloading are persuasive due their very low cost per part. Workpiece transfer is performed with the greatest position accuracy. There is no need for linking or turning stations between the first and second setup. High axis speeds enable low cycle and idle times. MAXIMUM FLEXIBILITY Hessapp DVT pick-up vertical turning machines can be modularly configured for each turning task. The DVH base machine can be customized using additional modules like different motor spindles, a drilling and milling unit, integrated measuring device, NC lifting slide and various automation solutions.
