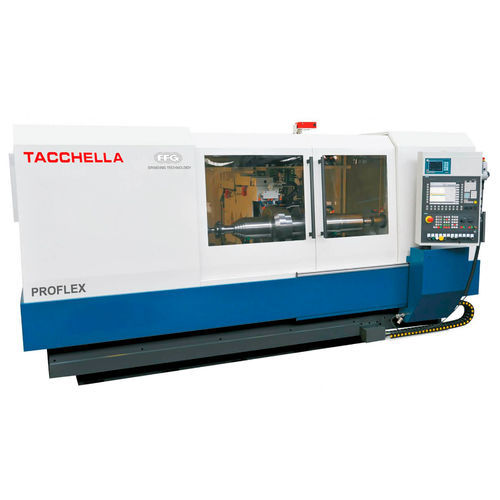

External cylindrical grinding machine TACCHELLA PROFLEX series

internal cylindricalfor shaftcamshaft

Tacchella Proflex external and internal cylindrical grinding machines are the ideal solution for precision grinding, including on gear shafts, bearings, pump gears and spindles in small or large quantities and at multiple diameters or machining interpolations. Tacchella Proflex grinding machines enable round, non-round and polygonal workpieces up to 400 kg to be ground with absolute precision. The series covers grinding lengths from 400 to 1,600 mm with a center height up to 305 mm. ADVANTAGES HOW TO BENEFIT FROM TACCHELLA PROFLEX EXTERNAL AND INTERNAL CYLINDRICAL GRINDING MACHINES ENHANCED PERFORMANCE The monolithic machine bed on Tacchella Proflex grinding machines is made of stabilized and ribbed cast iron and offers peripheral channels to catch the coolant. The machine bed perfectly intercepts the thermal changes and vibrations that arise during grinding to ensure outstanding quality of the ground workpieces. TOP PRECISION The workpiece headstock with a fixed or rotating spindle is ideal for live grinding operations and grinding between centers. High-precision bearings with a rounding accuracy below 0.001 mm enable positioning of the workpiece headstock on a swiveling frame. The tailstock is hydraulically driven. It has a safety device for regulating the pressure between the points and the resulting axle load, as well as a micrometric system to correct the workpiece's cylindrical properties. MAXIMUM FLEXIBILITY These multi-tasking grinding machines permit the combined use of 2, 3 or 4 conventional grinding wheels (610 and/or 760 mm) or CBN high-speed grinding wheels (400 and/or 500 mm).
