5-axis CNC milling machine SPECHT 500 NG
horizontalHSK A-63HSK-A 100

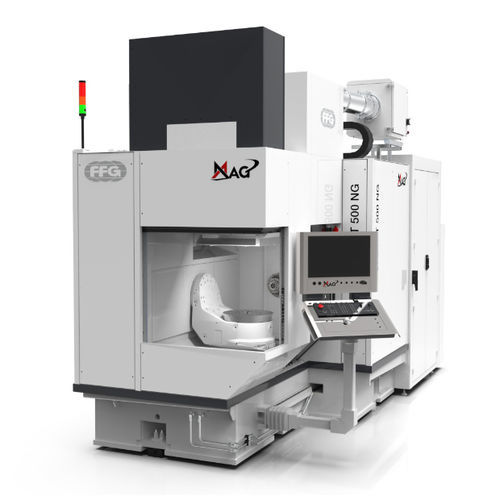

5-axis CNC milling machine - SPECHT 500 NG - FFG Europe & Americas - horizontal / HSK A-63 / HSK-A 100
5-axis CNC milling machine - SPECHT 500 NG - FFG Europe & Americas - horizontal / HSK A-63 / HSK-A 100
5-axis CNC milling machine - SPECHT 500 NG - FFG Europe & Americas - horizontal / HSK A-63 / HSK-A 100 - image - 2
5-axis CNC milling machine - SPECHT 500 NG - FFG Europe & Americas - horizontal / HSK A-63 / HSK-A 100 - image - 3
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Spindle mount
HSK A-63, HSK-A 100
Number of tool stations
26 tools, 44 tools
Applications
for the mold industry, for the aerospace industry, for medical applications
Other characteristics
high-performance, compact, high-rigidity, with tool changer
X travel

630 mm
(24.8 in)

Y travel

630 mm
(24.8 in)

Z travel

860 mm
(33.86 in)

Rotational speed

16,000 rpm, 18,000 rpm
(100,531 rad.min-1, 113,097 rad.min-1)

Power

42 kW, 52 kW
(57.1 hp, 70.7 hp)

Work feed X-axis

70 m/min

Work feed Y-axis

70 m/min

Work feed Z-axis

100 m/min

Table load capacity

400 kg
(882 lb)

Tool-changing time

2.5 s, 2.7 s

Overall length

4,700 mm
(185 in)

Overall width

2,000 mm
(78.7 in)

Overall height

3,300 mm
(129.9 in)

Description

The new highly dynamic and compact MAG SPECHT 500 NG from the MAG assembly program can be used both in dry and wet conditions thanks to the optimized working chamber. Due to the very good accessibility of the workspace, you always have a view of your current high-performance machining. INDUSTRIES Equal to any challenge – not only in these industries Machinery/General Engineering E-Mobility Job Shops ADVANTAGES The faster chip-to-chip time of the MAG SPECHT 500 NG, B and A tables, and higher capacity tool changers increase production capacity. With the most compact footprint in this machine class, the MAG SPECHT 500 NG can offer the same rigidity and productivity as the proven SPECHT machining centers. LATEST CONTROL Latest control generations from Fanuc and Siemens Optional technology support for fixtures and machining strategy The MAG SPECHT 500 NG 5-axis milling machines cut a fine figure in any flexible production environment in terms of performance, efficiency and product quality. Gain some exciting insights into the working environment of our machines here.

VIDEO
