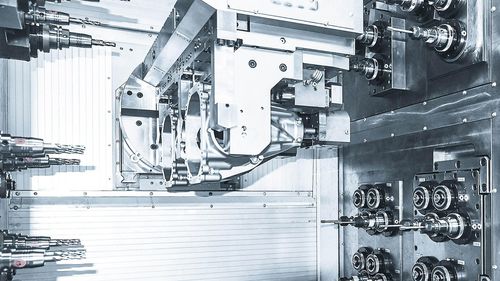

Linear transfer machine MAG XT 525

CNCmulti-spindlemachining

MAG XT 525 Transfer Centers combine the options and benefits of a transfer line with those of a CNC machining center. The entire work sequence is performed sequentially in a single setup once the device has used the pick-up procedure to collect the workpiece from the supply unit and clamp it. There is no need for unproductive tool changing at each step, since a separate spindle with the corresponding tool is available in the work area. INDUSTRIES Equal to any challenge – not only in these industries Automotive OEMs and Suppliers High volume machining with the flexibility of a machining center and the yield rates of a transfer line ADVANTAGES HOW TO BENEFFIT FROM MAG XT 525 TRANSFER CENTERS Highest yield rates MAG XT 525 Transfer Centers are the ideal solution for complete machining of medium to larger batch sizes. Chip-to-chip times of 0.5 to 1.5 seconds can be realized, since unproductive tool changing is not required. Maximum flexibility The rotation speed, rigidity and precision of the working spindles on the transfer centers can be adapted to the production process. Even 5-axis machining is possible – without tool changing times and disruptions caused by tool changing. Reduced costs MAG XT 525 Transfer Centers replace several CNC machines given sequential machining. This significantly reduces investment and operating costs. Simple automation Loading and unloading of the MAG XT 525 Transfer Center is performed in one step. A shuttle lifts the workpiece from the conveyor belt and places it into the work area.
