Stud tightening module

automaticlinear

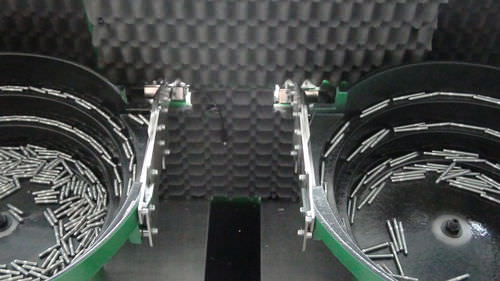

Fiam designed and manufactured a new solution to process two different types of stud bolt: symmetric and asymmetric, threaded elements diffused mainly in the automotive sector (engine assembly, alternator, air conditioners and mechanical components in general). Scope of solution: 2 Circular feeders customized on the type of stud bolt; they assure high supply and capacity without using hoppers 2 Linear feeders customized to convey the stud bolts 2 Stud bolt selectors: The system to process asymmetric stud bolts is equipped with a camera that detects the direction of the stud and a special rotating device that oriented the stud in the right direction before conveying it to the nosepiece for the automatic tightening. A single stroke fastening slide with: - Special analog transducer recognizing different fastening depth according to the type of stud and the workpiece to be processed - Air nutrunner motor with air shut off that ensures the assembly to 4 Nm torque - Special screw head that can receive and hold both types of stud bolts
