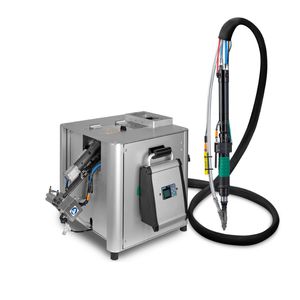

Straight air screwdriver CA- EasyDriver ED B
with automatic feedwith integrated transducer

Straight air screwdriver - CA- EasyDriver ED B - FIAM - with automatic feed / with integrated transducer
Straight air screwdriver - CA- EasyDriver ED B - FIAM - with automatic feed / with integrated transducer
Straight air screwdriver - CA- EasyDriver ED B - FIAM - with automatic feed / with integrated transducer - image - 2
Add to favorites
Compare this product


Characteristics

Type
straight
Other characteristics
with automatic feed, with integrated transducer
Rotational speed

Min.: 400 rpm
(2,513.3 rad.min-1)

Max.: 2,700 rpm
(16,964.6 rad.min-1)

Torque

Min.: 0.4 Nm
(0.3 ft.lb)

Max.: 12 Nm
(8.85 ft.lb)

Description

Handheld tightening system with automatic screw feeding: • Eliminates the manual steps of screw pick and place on the bit/piece • Ensures the continuous supply of screws which are «shot» automatically • Reduces tightening times (–35%) • Interconnects with the factory system (INDUSTRY 4.0) • Ensures less operator fatigue The air screwdriver is suitable for precise tightening up to 12Nm even in heavy duty conditions and at low supply pressures and has a mechanical clutch for torque control which automatically and instantly stops the supply air and guarantees high torque repeatability even when joint elasticity changes. Available 2 tightening devices: • FORWARD BIT STROKE: patented by Fiam, allows the bit to advance automatically and reduces operator fatigue, keeps the screw tip in sight. During tightening phase, the screwdriver head does not touch the component surfaces, thereby avoiding any friction and damage. • TELESCOPIC DEVICE: allows to reach tightening points in inaccessible spaces or at great depths and therefore inside holes thanks to its telescopic stroke of 40, 60 and 100 mm. The two built-in sensors make it possible to work with two tightening modes: – With torque control – With tightening height control. The screw feeder ED B: bowl 240 mm in Ø and for screws between 10 and 35 mm in lenght; ensure process reliability and great working autonomy. Has integrated: – PLC – Modbus TCP/IP protocol – EDMI Interface web server for remote connection to the tightening system - Analogic line pressure switch - Filter-Regulator-Lubricator unit
