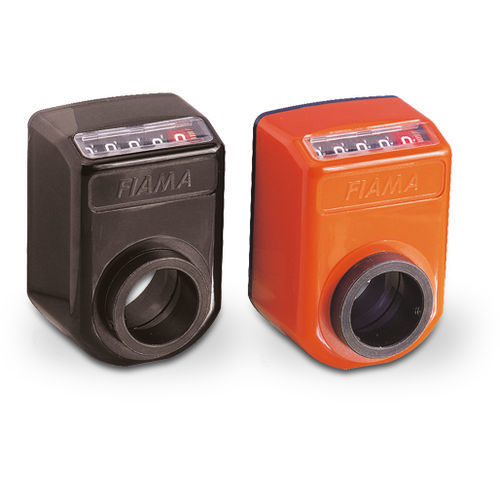

Position indicator OP9

6-digithollow-shaft

This is a 5-digit indicator to adjust and to read directly a motion or an angle, obtained by a drive shaft rotation. Shock-proof self-extinguishing technopolymer case. Protection IP64. Max. temperature: 80°C. Reading with 18° tilted or frontal view. 5 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 5 black digits). Readings until 99999. Digit height: 7 mm., with. Model OP9T: 4 digits with Vernier. On request special ratios and measures in Inch. OP9 standard shaft hole ø30, model OP9F35 hole ø35, different holes with reducing bush. Lock-pin: centre distance 40 mm (standard) or 30 mm (indicate I30). Model IN with inox metallic parts. Colours: orange RAL 2004, black RAL 9005. Available attachments: anodized aluminium shaft block flange.
