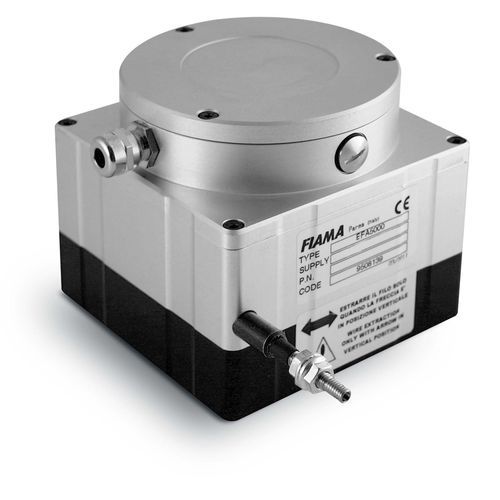

Draw-wire displacement sensor EFA series

opticalanalogincremental

EFA4000, EFA5000, EFA6000, EFA8000, EFA10000, EFA12000 are incremental wire transducers that turn a linear motion into coded digital pulses. They are made of an incremental optical encoder activated by the stroke of a winding or unwindingstainless steel wire (0,1 mm. the resolution with quadruplied count). A special feature is their easy assembling. Analogue and serial outputs are provided. The linking together to a display or an electronic positioner (for example FIX5, F2X,P1X) supplies a simple, effective system to measure linear or angular motions on machine tools, automatic-,wood-, marble-, glassworking machinery, cylindrical-, hydraulic-, pneumatic stroke, shutiers, etc. These transducers are carried out in case in oxidized aluminium.
