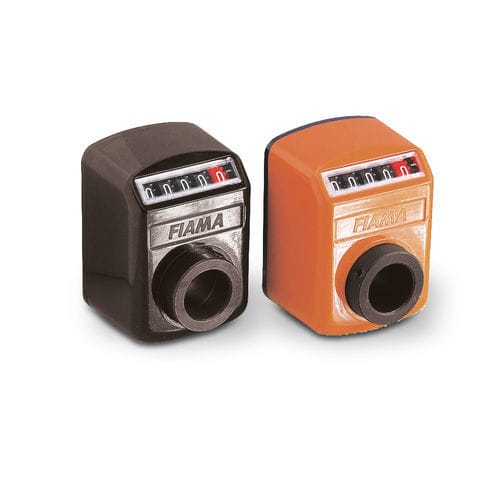

Position indicator OP5

6-digithollow-shaft

This is a 5-digit indicator to adjust and to read directly a motion or an angle, obtained by a drive shaft rotation. Shock-proof, self-extinguishing technopolymer case. Protection IP54. Max. temperature: 70°C . Reading with 45° inclination view. 5 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 5 black digits) with readings until 99999. Digit height mm 5,5. On request special ratios and measures in Inch. Standard shaft hole: 20 H; different holes smaller than 20 with reducing bush (see p. 26). Model OP5 with roller for positioning and zero-setting AZZ. 4 digits counter. It is possible to reverse the counting direction ratios from pitch 1 to pitch 15 Model IN with inox metallic parts. Colours: orange RAL 2004, black RAL 9005 Available attachments (see p. 24): anodized aluminium shaft block flange.
