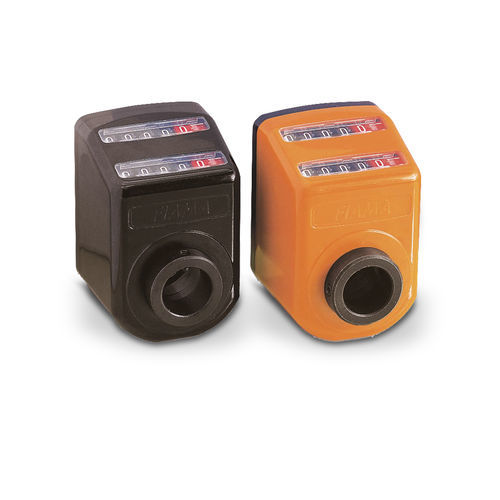

Position indicator OP12

6-digithollow-shaft

This is a digital indicator with two 5-digit counters to adjust and directly read a motion through a drive shaft rotation. Shock-proof self-extinguishing technopolymer. Protection IP64. Max. temperature 80°C. Reading with 18° inclination. Two counters with 5 digits (standard red digit indicates decimals; on request 2 red digits for hundredths or 5 black digits). Readings until 99999. Digit height: 5,5 mm. Standard shaft hole: 25H7. Smaller holes with reducing bush. Lock-pin: centre distance 40 mm (standard) or 30 mm (indicate I30). Counters models: increase-increase (DX-DX), decrease-decrease (SX-SX), increase-decrease (DX: referred to the higher counter 1), decrease-increase (SX: referred to the higher counter 1). OP12: 2 counters; OP12AZZ: high counter with positioning and zero-setting push-button; OP12R with the function of the two counter s change lever for measuring, for example, tool s radius ( pitch) or diameter (double pitch). OP12R with ratio until 1 rev=60. Colours: orange RAL 2004, black RAL 9005.
