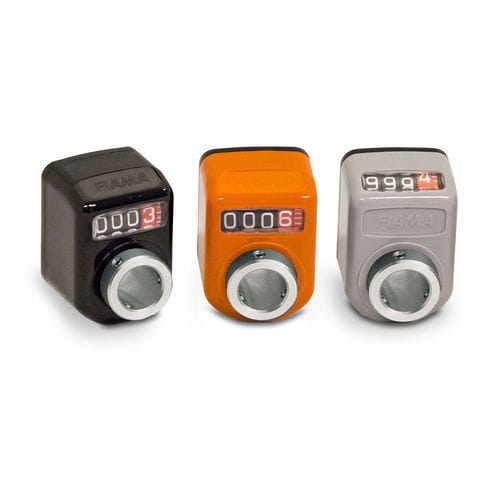

Position indicator OP 3

4-digithollow-shaft

This is a 4-digit indicator to adjust and directly read a motion (or an angle) obtained by a drive shaft rotation. Shock-proof self-extinguishing technopolymer. Protection IP64. Max. temperature 80°C. Reading with inclined 18° or frontal view. 4 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 4 black digits). Reading until 9999. Digit height 5 mm On request special ratios and measures in Inch. Standard shaft hole: 14H7. Other holes, smaller than 14 with a reducing bush . On request (P6) Ø 6 mm lock pin, (c) Ø 9/10,5 mm lock pin. Model IN with inox metallic parts. Colours: orange RAL 2004, black RAL 9005, red RAL 3000, grey RAL 7004. Available attachments:shaft block flange, polycarbonate spacer flange, anodized aluminium movement knob.
