Position panel meter AP series

analogpanel-mount

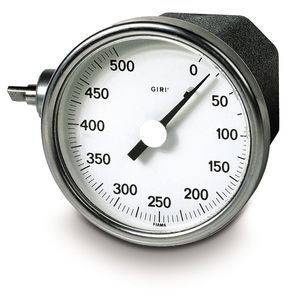

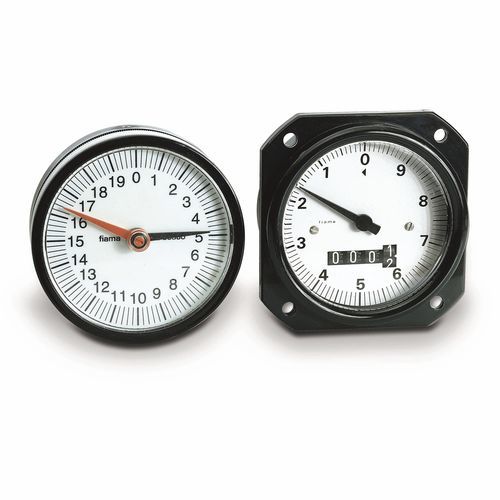

These are mechanical indicators for panel fixingused to read measures, angles, shiftings, etc. AP90: analogue indication of the measure on a circular graduated scale. At every turn of the drive shaft the pointer makes a rotation fraction. The turnsthat the pointer needs to carry out to complete a rotation is the ratio of the indicator. APFL, AP90N: with analogue-digital indication. The measures reading is ensured by a4-digit counter APFL or 5-digit counter AP90N (red digits to indicate decimals) and by a graduated control dial. The pointer carries out a complete turn at every rotation of the drive shaft and reads the decimal values. Polycarbonate self-extinguishing case. Protection IP54. Max.temperature 80°C. Back drive shaft for direct connection or with flexible shaft. The fixing on the panel for AP90 and AP90N is carried out with 2 threaded inserts M4x10 fitted on the back of the instrument and with a flange for theAPFL.
