Universal indicator F1X5

digitalpanel-mount

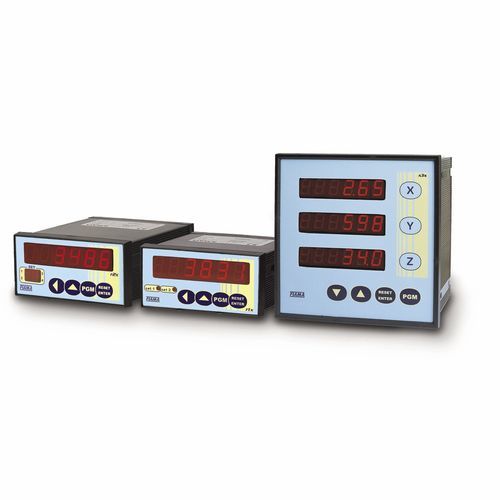

The F1X5 instrument is a mono-bidirectional display unit with microprocessor and six-digit display (reading scale -99999 +999999). It is indicated for the measurement of linear and angular dimensions with signal supplied by incremental transducers such as encoders and optical lines, magnetic band, proximity sensors, etc. The setting of all the parameters that regulate the F1X5 instrument functioning is carried out through four keys placed on the front panel. Other features: input pulses correction factor, enabling of 2 relays, reset/preset of the dimension from keyboard and from terminal box. These features, together with a low cost, make the F1X5 display unit extremely versatile and suitable to many different applications. It is possible to set up the tool and check its status through serial interface. Versions: F1X5- only displayed; F1X5-2 with 2 switch relay interventions; F1X5-RS232 or F1X5-RS485 with RS232 or RS485 serial output MODBUS; F1X5-2RS232 or F1X5-2RS485 with 2 relay interventions and RS232 or RS485 serial output. The version F1X5-SSI is used for absolute transducers which use an interface SSI (standard RS422): the system can be configured to accept a gray or binary format with byte numbers that can be selected between 4 and 24.
