2-axis inclinometer analog
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2-axis
- Output
- analog
- Inclination
Max.: 360 °
Min.: -60 °

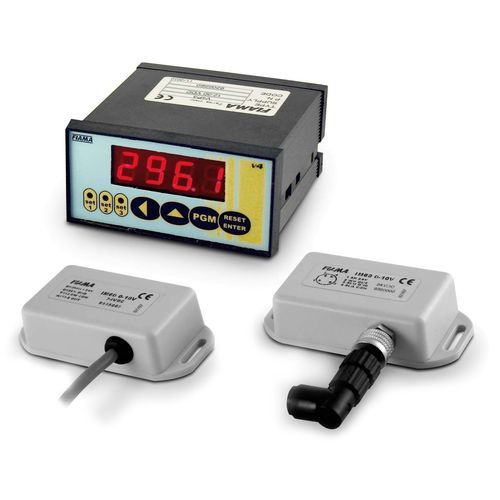

Description
They are transducers employed for the survey of listing angle, with reference to earth's axis.
These inclinometers employ a solid state sensor, vibrations and shock-resistant, without parts in motion.
Types:
IM60-I with analogic output 4-20 mA, IM60-V with analogic output 0-10 Vdc: measure ±60°.
IM360-I with analogic output 4-20 mA, IM360-V with analogic output 0-10 Vdc: measure 0-360°.
IM60-I2 with two analogic outputs 4-20 mA, IM60-V2 with two analogic outputs 0-10 Vdc: measures ±60°on two perpendicular axis.
These are accurate linear transducers, compact and easy to fix.
Their main applications are:the measure of inclination angle of cutting-blade, crane, level control of platform etc.
