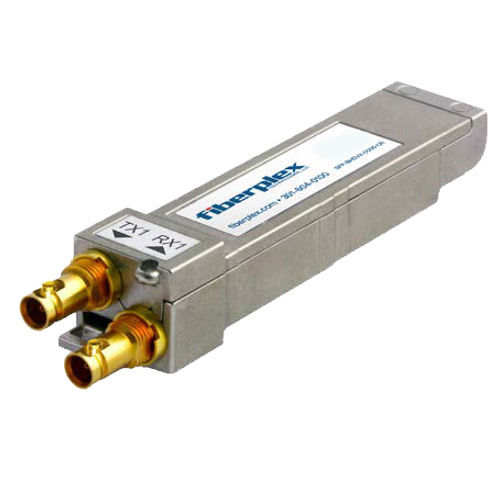

SFP transceiver module SFP-BSDVXC-0000-L

analog

The SFP-BSDVX-0000-L is an electrical SFP transceiver module designed to encode and decode composite signals over 75Ω coaxial cables via HD-BNC™ connectors. On the receive channel, the module decodes NTSC/PAL composite inputs and convert to SD-SDI signal. On the transmit channel, the module encodes the SD-SDI signal to NTSC/PAL composite. The SFP-BSDVX-0000-L provides module identification information, configuration and diagnostic monitoring through a two wire serial interface. It is also a hotpluggable solution for field system upgrade and maintenance. The SFP-BSDVX-0000-L is interchangeable with other MSA optical video SFP or coaxial SFP improving product flexibility. Ganged cages, belly-to-belly and superposed cages mounting are supported. The module is SMPTE compliant resulting in reduced development effort and cost. The SFP-BSDVX-0000-L is Pb-free and ROHS compliant.
