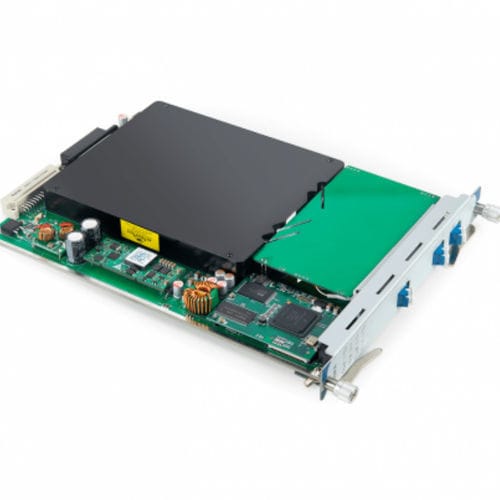

Power amplifier EDFA

opticaladjustabletransmission

-Three Optical Amplifier C-Band applications: Booster amplifier Line amplifier Pre-amplifier -l Multiple operating modes: AGC adjustable Gain APC output is adjustable ACC voltage adjustable Transient response control: high performance transient response control to ensure power, -Gain and stability, without affecting existing signal; -customization: Support more saturated output power 13 ~ 24dBm customization Support a variety of specifications 8 ~ 35dB Gain customization Support red and blue port ,The design of these models is used for single-fiber DWDM transmission systems. -Midstage access： Designed for insertion of a DCM unit without its inherent insertion loss.； Designed for insertion of a OADM unit without its inherent insertion loss； -Advanced network management features: Optional OSC management channel for remote management MON own monitoring port, on-line monitoring optical power and OSNR Supports SNMP, Web, console management; EDFA Amplifiers is part of the FR-8000 series optical multi-service transmission platform solution. Many model options serve all the traditional amplifier applications in an extended optical link: booster, in-line, and pre-amplifier. A Booster amplifier operates at the transmission side of the link. It features high input power, high output power, and medium optical Gain. Boosters are designed to amplify aggregated optical input power for reach extension.
